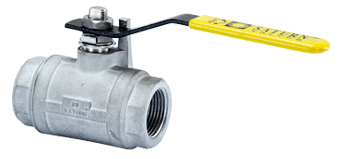

Split Body, Side Entry, Threaded Ends Ball Valve
 |
| |
Model: |
BL-1-F-P-A2 (Threaded Ends to BSP II) |
| |
BL-1-F-N-A2 (Threaded Ends to NPT) |
| Size: |
8-50 mm |
| Bore: |
Full bore |
| Material : |
Carbon Steel, Stainless Steel and Alloy Steel |
| Seat: |
PTFE/ RPTFE/ NYLON |
| Ratings: |
300 Class |
| Ends: |
Screwed to BSP II |
| |
NPT |
|
 |
|
 Click Here for a downloadable and / or printable version of this page. |
| Design Features | Standards | Application | Exploded View | Dimension View |
| |
|
| Design Features |
Standards |
Compact and suitable for eliminating external joint leakage to the atmosphere where applications are highly critical,media is expensive, toxic and external joint leakage is not acceptable. |
Design : ASME B 16.34, BS EN ISO 17292 |
Self adjustable gland packing |
Pressure Test : API 598 / BS EN ISO 12266-1 |
Maintenance free live loaded double sealing in gland |
Face to Face : Manufacture's standard |
High cycle stem packing system provides extra longer service life |
Ends : Screwed meets ANSI B2.1 |
Anti-Static Device |
Material Certifications : DIN 50.049-3 1B |
Blowout proof Stem |
Quality Systems / Certifications : ISO 9001:2008 |
|
| |
| Application |
| Oil, Gas, Steam, Vacuum, Air, Vent etc. services. |
|
| |

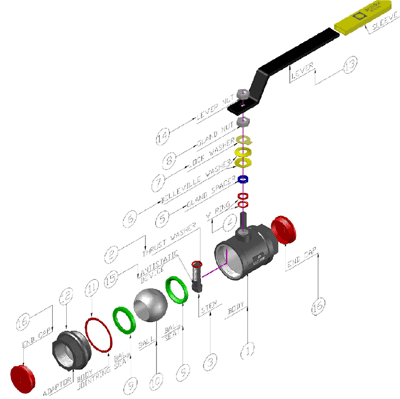

| Exploded View |
| |
|
|
|
|
| |
| No. |
Description |
Material |
Qty |
| 1 |
BODY |
LCB / WCB / CF8 / CF8M / CF3 / CF3M |
1 |
| 2 |
THRUST WASHER |
PTFE / GFT / CFT |
1 |
| 3 |
STEM |
AISI 304 / 304L / 316 / 316L |
1 |
| 4 |
GLAND SEAL RING |
PTFE / GET / CFT / GRAPHITE |
1 SET |
| 5 |
GLAND SPACER |
AISI 316 / 316L |
1 |
| 6 |
BELLEVILLE WASHER |
SPRING STEEL ZINC PLATED / S.S 304 |
2 |
| 7 |
LOCK WASHER |
C.S ZINC PLATED / S.S 304 |
1 |
| 8 |
GLAND NUT |
C.S ZINC PLATED / S.S 304 / 316 |
1 |
| 9 |
BALL SEAT |
PTFE / GFT / CFT / Sp.RPTFE |
2 |
| 10 |
BALL |
CF8 / CF3 / CF8M / CF3M |
1 |
| 11 |
BODY JOINT RING |
“O” RING STYLE PTFE / GFT / CFT / FLAT STYLE GRAPHITE |
1 |
| 12 |
ADAPTOR |
LCB / WCB / CF8 / CF8M / CF3 / CF3M |
1 |
| 13 |
LEVER WITH PVC SLEEVE |
C.S P.C / CF8 |
1 |
| 14 |
LEVER NUT |
C.S ZINC PLATED / S.S 304 |
1 |
| 15 |
ANTISTATIC DEVICE |
AISI 316 / 316 L |
1/2 |
| 16 |
END CAP |
PVC |
2 |
|
| |
|
| |

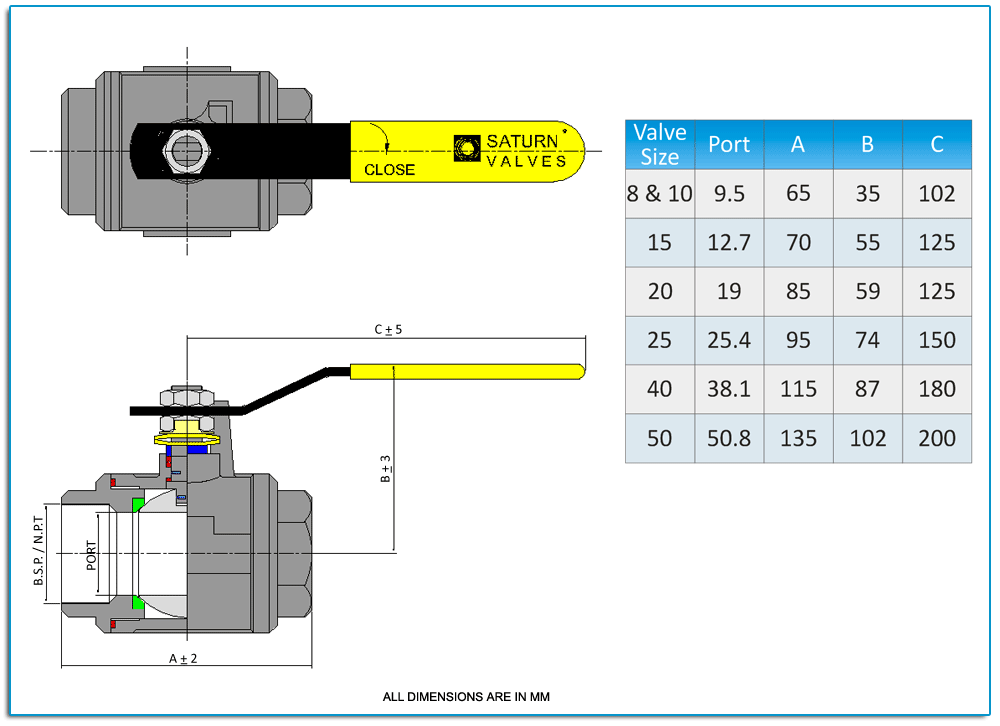

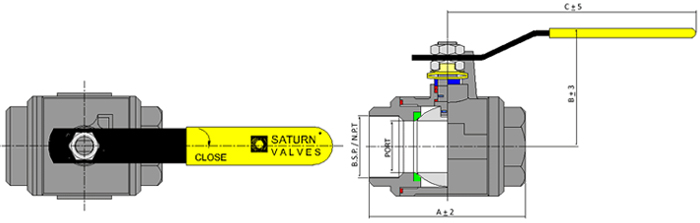

| Dimension View |
| |
 |
| |
|
| |
| Valve
Size |
Port |
A |
B |
C |
| 8 & 10 |
9.5 |
65 |
35 |
102 |
| 15 |
12.7 |
70 |
55 |
125 |
| 20 |
19 |
85 |
59 |
125 |
| 25 |
25.4 |
95 |
74 |
150 |
| 40 |
38.1 |
115 |
87 |
180 |
| 50 |
50.8 |
135 |
102 |
200 |
|
| |
ALL DIMENSIONS ARE IN MM |
|
| |
|
